The finite volume code d³f⁺⁺ has been developed to meet the needs of far field modelling as part of long-term safety analyses for nuclear waste repositories. The development started in 1994 with the computer codes d³f (distributed density-driven flow, Fein & Schneider, 1999) and r³t (radionuclides, reaction, retardation, and transport, Fein, 2004). Both codes were based on the simulation toolbox UG (unstructured grids, Bastian et al, 1997), a software framework for the numerical solution of coupled systems of partial differential equations developed by a research group of the Frankfurt University. The smart K_d-concept was originally implemented in the code r³t during the project ESTRAL (Noseck et al, 2012). With the transfer to the new code version Vogel et al, 2013), d³f and r³t were combined to the code d³f⁺⁺ (Schneider, 2016). The code is fully parallelized.

Today, d³f⁺⁺ allows to simulate density-driven flow in porous as well as fractured media at regional scale considering heat transport as well as free surface flow. The transport of radionuclides or other substances can be modelled regarding the effects that are relevant for safety assessments, e. g. radioactive decay, equilibrium and kinetically controlled sorption, precipitation and colloid-borne transport. The smart K_d‑concept (Coupling with transport, Noseck et al, 2018) provides the equilibrium sorption model with input parameters depending on certain environmental parameters.

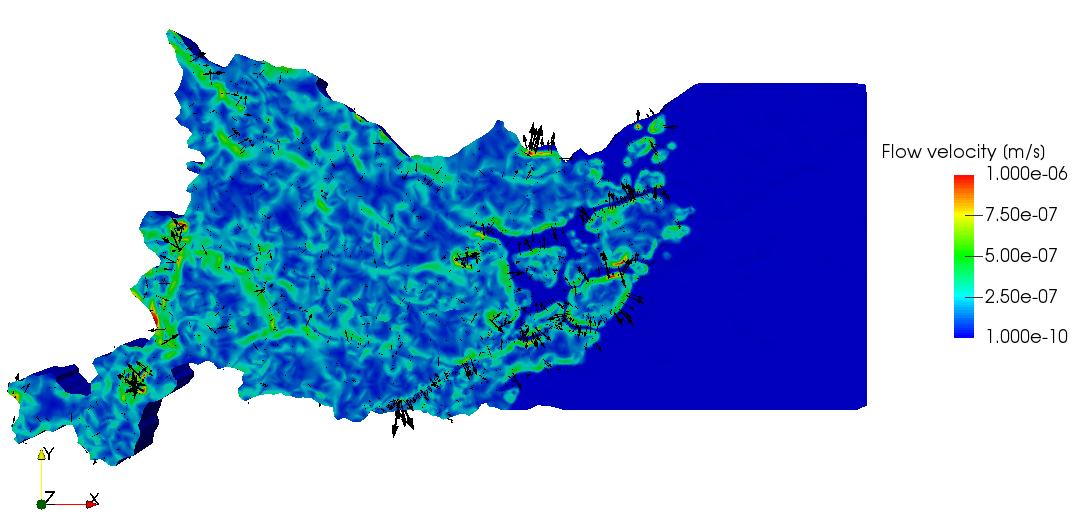

Fig. 2: Results of the Äspö site descriptive model as example for a d3f++ simulation on a regional scale.
